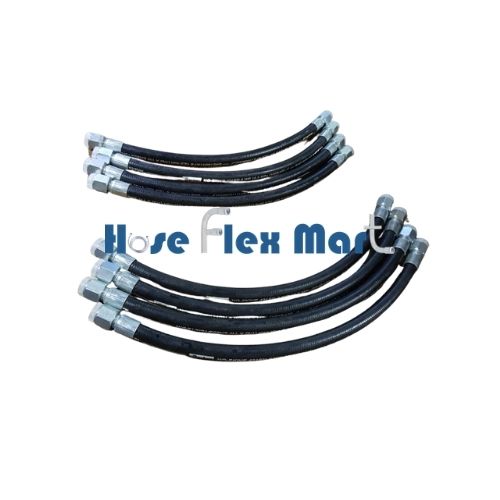

4SH Hydraulic Hose

₹346.50 – ₹28,050.00

Product	4SH Hydraulic Hose
Material	Hydraulic Hose
Brand	HoseFlexMart
Origin	Made in India

HoseFlexMart is a Manufacturer, Supplier, Trader & Exporter of 4SH Hydraulic Hose, 4SH Hydraulic Hose Pipe in Mumbai, Maharashtra, India.

4SH Hydraulic Hose, 4SH Hydraulic Hose Pipe, Hydraulic Hose 4SH, 4SH High-Pressure Hydraulic Hose Manufacturers in India.

Name: 4SH Hydraulic Hose
SKU: 5020
Availability: InStock

4SH Hydraulic Hose is a super high-pressure hose that consists of ozone and weather-proof cover, excellent oil resistant synthetic rubber tube, and four layers of spiral wire reinforcement. 4SH Hydraulic Hose Pipe shares outstanding kick resistance, impulse resistance and can support surge pressure. Spiral high tensile steel wire support super high working pressure ranging from 6090psi of 3/4″ bore size to 3625psi of 2″ I.D.

4SH Hydraulic Hose is widely used in applications where high pressure, high abrasion, and kick resistance are urgently required. Water and petroleum-based hydraulic fluids within 40°F to +212°F are available. When the temperature of the media surpasses 212°F, potential leakage and another failure will be caused.

Know More About Hydraulic Hoses

4 SH Hydraulic Hose Features

> Very High Pressure, 4 Steel Wire Spirals Reinforced Hydraulic Hose for Petroleum Base Hydraulic Fluids.

> Inner Tube is Seamless Oil Resistant Synthetic Rubber.

> Reinforced with 4 Spirals of Very High Tensile Steel Wire.

> Cover is Black, Oil, Weather, and Abrasion Resistant Synthetic Rubber MSHA Approved.

> Safety Factor: 4:1.

> Temperature Range: – 40°F to 212°F (- 40°C to 100°C).

> Intermittent Service 248°F (120°C).

> Maximum Temperature for Water Base Hydraulic Fluids 158°F (70°C).

> Maximum Temperature Recommended for Air 140°F (60°C).

Construction of 4SH Hydraulic Hose

Tube – Synthetic rubber, black… oil-resistant.
Reinforcement – Four layers of spirally-wrapped high tensile steel wire reinforcement, separated by synthetic rubber over a fabric layer.
Cover – Synthetic rubber, black

Applications of 4SH Hydraulic Hose

Extremely high pulsating pressure service with petroleum-based hydraulic fluids. Specially designed to achieve long impulse life together with excellent flexibility at
the most severe high pulsating working pressure and temperature conditions.
